| S7700基本描述 |
| LE0BN66EDC |
N66E直流总装机柜(共4路40A输出，单路最大1600W，600X600X2200mm) |
| LE0BN66EAC |
N66E交流总装机柜(共8路10A输出，单路最大1600W，600X600X2200mm) |
| LE2BN66EA000 |
N66E交流总装机柜(共4路16A输出，单路最大2500W，600X600X2200mm) |
| ES0B00770300 |
S7703总装机箱 |
| ES0B00770600 |
S7706总装机箱 |
| ES1BS7710S00 |
S7710总装机箱 |
| ES0B00771200 |
S7712总装机箱 |
| ES1BS7703S01 |
S7703总装机箱-支持FCC |
| ES0B017706P0 |
S7706 POE总装机箱 |
| ES0B017712P0 |
S7712 POE总装机箱 |
| LE0M00FBXB00 |
宽电压68风机盒 |
| ES1M00FBX001 |
增强型宽电压68风机盒 |
| 监控板 |
| LE0DCMUA0000 |
集中监控板 |
| 主控处理单元 |
| ES0D00MCUA00 |
S7703 主控处理单元A |
| ES1D2MCUAC00 |
S7703 主控处理单元A(可选配时钟) |

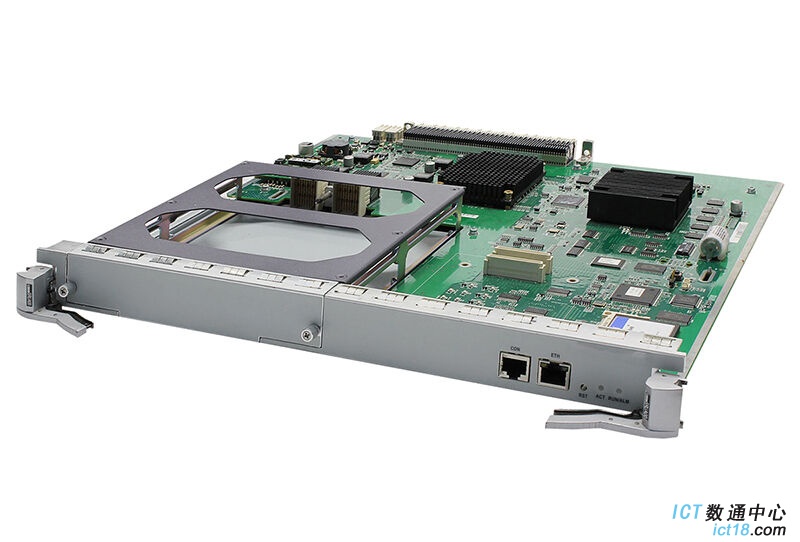

| ES0D00SRUA00 |
S7706/S7712 主控处理单元A |
| ES1D2SRUAC00 |
S7706/S7712 主控处理单元A(可选配时钟) |
| ES0D00SRUB00 |
S7706/S7712 主控处理单元B-时钟 |
| ES1D2SRUE000 |
S7706/S7712 主控处理单元E |
| ES1D2SRUKC00 |
S7710 主控处理单元K(可选配时钟) |
| ES1D2SFUK000 |
S7710 交换网单元K |
| ES1D2SRUH000 |
S7706/S7712主控处理单元H |
| 业务子卡 |
| ES0D00FSUA00 |
增强灵活业务子卡 |
| ES02VSTSA |
集群业务子卡 |
| ES1D2VS04000 |
4端口万兆集群业务子卡(SFP+) |
| LE0D00CKMA00 |
时钟扣板-1588 |
| 十兆/百兆/千兆以太网电接口板 |
| ES0DG24TFA00 |
24端口十兆/百兆/千兆以太网电接口板(FA,RJ45) |
| ES0D0G48TA00 |
48端口十兆/百兆/千兆以太网电接口板(EA,RJ45) |
| ES0DG48TFA00 |
48端口十兆/百兆/千兆以太网电接口板(FA,RJ45) |
| ES0D0G48TC00 |
48端口十兆/百兆/千兆以太网电接口板(EC,RJ45) |
| ES1D2G48TED0 |
48端口十兆/百兆/千兆以太网电接口板(ED,RJ45) |
| ES0D0T24XA00 |
24端口十兆/百兆/千兆以太网电接口和2端口万兆以太网光接口板(EA,RJ45/XFP) |
| 敏捷单板 |
| ES1D2C04HX2S |
4端口100GE以太网光接口板(X2S,QSFP28) |
| ES1D2C04HX2E |
4端口100GE以太网光接口板(X2E,QSFP28) |
| ES1D2H02QX2S |
2端口100GE以太网接口和2端口40GE以太网光接口板(X2S,QSFP28) |
| ES1D2H02QX2E |
2端口100GE以太网接口和2端口40GE以太网光接口板(X2E,QSFP28) |
| ES1D2X48SX2S |
48端口万兆以太网接口板(X2S,SFP+) |
| ES1D2L08QX2E |
8端口40GE以太网光接口板(X2E,QSFP+) |
| ES1D2X32SX2S |
32端口万兆以太网光接口板(X2S,SFP+) |
| ES1D2X32SX2E |
32端口万兆以太网光接口板(X2E,SFP+) |
| ES1D2S24SX2S |
24端口万兆以太网接口和8端口千兆以太网光接口板(X2S,SFP+) |
| ES1D2S24SX2E |
24端口万兆以太网接口和8端口千兆以太网光接口板(X2E,SFP+) |
| ES1D2S16SX2S |
16端口万兆以太网接口和16端口千兆以太网光接口板(X2S,SFP+) |
| ES1D2S16SX2E |
16端口万兆以太网接口和16端口千兆以太网光接口板(X2E,SFP+) |
| ES1D2G48TX1E |
48端口十兆/百兆/千兆以太网电接口板(X1E,RJ45) |
| ES1D2G48SX1E |
48端口百兆/千兆以太网光接口板(X1E,SFP) |
| ES1D2S04SX1E |
4端口万兆光接口和24端口百兆/千兆光接口和8端口十兆/百兆/千兆combo电接口板(X1E,RJ45/SFP/SFP+) |
| ES1D2S08SX1E |
8端口万兆光接口和8端口百兆/千兆光接口和8端口十兆/百兆/千兆combo电接口板(X1E,RJ45/SFP/SFP+) |
| 百兆/千兆以太网光接口板 |
| ES0D0G24SA00 |
24端口百兆/千兆以太网光接口板(SA,SFP) |
| ES0D0G24SC00 |
24端口百兆/千兆以太网光接口板(EC,SFP) |
| ES0D0G24CA00 |
24端口百兆/千兆以太网光接口和8端口百兆/千兆Combo电接口板(SA,SFP/RJ45) |
| ES0D0S24XA00 |
24端口百兆/千兆以太网光接口和2端口万兆以太网光接口板(EA,SFP/XFP) |
| ES1D2S24XEC0 |
24端口百兆/千兆以太网光接口和2端口万兆以太网光接口板(EC,SFP/XFP) |
| ES0D0G48SA00 |
48端口百兆/千兆以太网光接口板(EA,SFP) |
| ES0D0G48SC00 |
48端口百兆/千兆以太网光接口板(EC,SFP) |
| ES1D2G48SFA0 |
48端口百兆/千兆以太网光接口板（FA,SFP） |
| 百兆/千兆以太网光电混合接口板 |
| ES0DG48CEAT0 |
36端口百兆/千兆以太网电接口和12端口百兆/千兆以太网光接口板(EA,RJ45/SFP) |
| 万兆以太网光接口板 |
| ES0D0X2UXA00 |
2端口万兆以太网光接口板(EA,XFP) |
| ES0D0X4UXA00 |
4端口万兆以太网光接口板(EA,XFP) |
| ES0D0X4UXC00 |
4端口万兆以太网光接口板(EC,XFP) |
| ES1D2X08SED4 |
8端口万兆以太网光接口板(ED,SFP+) |
| ES0D0X12SA00 |
12端口万兆以太网光接口板(SA,SFP+) |
| ES1D2X16SFC0 |
16端口万兆以太网光接口板（FC,SFP+） |
| ES1D2X16SSC2 |
16端口万兆以太网光接口板(SC,SFP+) |
| ET1D2X32SSC0 |
32端口万兆以太网光接口板(SC,SFP+) |
| ES1D2X40SFC0 |
40端口万兆以太网光接口板（FC,SFP+） |
| ES1D2X48SEC0 |
48端口万兆以太网光接口板(EC,SFP+) |
| 40GE以太网光接口板 |
| ES1D2L02QFC0 |
2端口40GE以太网光接口板(FC,QSFP+) |
| ES1D2L08QSC0 |
8端口40GE以太网光接口板(SC,QSFP+) |
| 100GE以太网光接口板 |
| ES1D2C02FEE0 |
2端口100GE以太网光接口板(EE,CFP) |
| POE接口板 |
| ES0D0G48VA00 |
48端口百兆/千兆以太网POE电接口板(EA,RJ45,POE) |
| 增值业务板 |
| ET1D2FW00S00 |
下一代防火墙业务处理板A-含华为通用安全平台软件 |
| ET1D2FW00S01 |
下一代防火墙业务处理板B-含华为通用安全平台软件 |
| ET1D2IPS0S00 |
入侵防御和入侵检测业务处理板A-含华为通用安全平台软件 |
| ACU2 |
WLAN ACU2无线接入控制板(含128 AP控制资源) |
| 光模块 |
| FE-SFP光模块 |
| S-SFP-FE-LH40-SM1310 |
光模块-eSFP-FE-单模模块(1310nm,40km,LC) |
| S-SFP-FE-LH80-SM1550 |
光模块-eSFP-FE-单模模块(1550nm,80km,LC) |
| SFP-FE-SX-MM1310 |
光模块-SFP-100M/155M-多模模块(1310nm,2km,LC) |
| eSFP-FE-LX-SM1310 |
光模块-eSFP-100M/155M-单模模块(1310nm,15km,LC) |
| GE-SFP模块 |
| SFP-1000BaseT |
电模块-SFP-GE-电接口模块(100m,RJ45) |
| eSFP-GE-SX-MM850 |
光模块-eSFP-GE-多模模块(850nm,0.5km,LC) |
| SFP-GE-LX-SM1310 |
光模块-SFP-GE-单模模块(1310nm,10km,LC) |
| S-SFP-GE-LH40-SM1310 |
光模块-eSFP-GE-单模模块(1310nm,40km,LC) |
| S-SFP-GE-LH40-SM1550 |
光模块-eSFP-GE-单模模块(1550nm,40km,LC) |
| S-SFP-GE-LH80-SM1550 |
光模块-eSFP-GE-单模模块(1550nm,80km,LC) |
| eSFP-GE-ZX100-SM1550 |
光模块-eSFP-GE-单模模块(1550nm,100km,LC) |
| 10GE-XFP光模块 |
| XFP-SX-MM850 |
光模块-XFP-10G-多模模块(850nm,0.3km,LC) |
| XFP-STM64-LX-SM1310 |
光模块-XFP-10G-单模模块(1310nm,10km,LC) |
| XFP-STM64-LH40-SM1550 |
光模块-XFP-10G-单模模块(1550nm,40km,LC) |
| XFP-STM64-SM1550-80km |
光模块-XFP-10G-单模模块(1550nm,80km,LC) |
| 10GE-SFP+光模块 |
| OMXD30000 |
光模块-SFP+-10G-多模模块(850nm,0.3km,LC) |
| SFP-10G-iLR |
光模块-SFP+-9.8G-单模模块(1310nm,1.4km,LC) |
| OSX010000 |
光模块-SFP+-10G-单模模块(1310nm,10km,LC) |
| OSX040N01 |
光模块-SFP+-10G-单模模块(1550nm,40km,LC) |
| OSXD22N00 |
光模块-SFP+-10G-多模模块(1310nm,0.22km,LC,LRM) |
| LE2MXSC80FF0 |
光模块-SFP+-10G-单模模块(1550nm,80km,LC) |
| SFP-10G-USR |
光模块-SFP+-10G-多模模块(850nm,0.1km,LC) |
| SFP-10G-ZR |
光模块-SFP+-10G-单模模块(1550nm,80km,LC) |
| SFP-10G-BXU1 |
10GBase-BIDI单纤双向光模块-SFP-10G-单模模块(TX1270nm/RX1330nm,10km,LC) |
| SFP-10G-BXD1 |
10GBase-BIDI单纤双向光模块-SFP-10G-单模模块(TX1330nm/RX1270nm,10km,LC) |
| SFP-10G-BXU2 |
10GBase-BIDI单纤双向光模块-SFP-10G-单模模块(TX1330nm/RX1270nm,20km,LC) |
| SFP-10G-BXD2 |
10GBase-BIDI单纤双向光模块-SFP-10G-单模模块(TX1270nm/RX1330nm,20km,LC) |
| SFP-10G-ER-SM1330-BIDI |
光模块-SFP+-10G-BIDI单模模块(TX 1330nm/RX 1270nm,40km,LC) |
| SFP-10G-ER-SM1270-BIDI |
光模块-SFP+-10G-BIDI单模模块(TX 1270nm/RX 1330nm,40km,LC) |
| SFP-10G-AOC3M |
AOC光模块-SFP+-850nm-1G~10G-0.003km |
| SFP-10G-AOC10M |
AOC光模块-SFP+-850nm-1G~10G-0.01km |
| QSFP-4SFP10-AOC10M |
光收发一体模块-QSFP+-40G-(850nm,10m,AOC)(对接4个SFP+) |
| QSFP-H40G-AOC10M |
光收发一体模块-QSFP+-40G-(850nm,10m,AOC) |
| SFP-10G-ZCW1571 |
光模块-SFP+-10G-单模模块(CWDM,1571nm,70km,LC) |
| SFP-10G-ZCW1591 |
光模块-SFP+-10G-单模模块(CWDM,1591nm,70km,LC) |
| SFP-10G-ZCW1611 |
光模块-SFP+-10G-单模模块(CWDM,1611nm,70km,LC) |
| 40GE-QSFP+&CFP光模块 |
| QSFP-40G-LX4 |
40GBase-LX4光模块-QSFP+-40G-单模(1310nm,2km,LC)-多模(1310nm,0.15km,LC) |
| QSFP-40G-iSM4 |
40GBase-iSM4光模块-QSFP+-40G-单模模块(1310nm,1.4km,MPO) (可对接4个SFP+) |
| QSFP-40G-eSM4 |
40GBase-eSM4光模块-QSFP+-40G-单模模块(1310nm,10km,MPO) (可对接4个SFP+) |
| QSFP-40G-iSR4 |
40GBase-SR4光模块-QSFP+-40G-多模模块(850nm,0.15km,MPO) (可对接4个SFP+) |
| QSFP-40G-LR4 |
40GBase-LR4光模块-QSFP+-40G-单模模块(1310nm,10km,LC) |
| QSFP-40G-eiSR4 |
40GBase-eSR4光模块-QSFP+-40G-多模模块(850nm,0.3km,MPO) (可对接4个SFP+) |
| QSFP-40G-ER4 |
40GBase-ER4光模块-QSFP+-40G-单模模块(1310nm,40km,LC) |
| CFP-40G-SR4 |
高速光模块-CFP-40G-多模模块(850nm,4*10G,0.1km,MPO) |
| CFP-40G-LR4 |
高速光模块-CFP-40G-单模模块(1310nm 波段,41.25G,10km,直口LC) |
| CFP-40G-ER4 |
高速光模块-CFP-40G-单模模块(1310nm 波段,41.25G,40km,直口LC) |
| CFP-100G-ZR4 |
100GBase-CFP模块-100G-单模模块(1310nm 波段,4*25G,80km,直口LC) |
| 100GE-CFP光模块 |
| QSFP-100G-SR4 |
100GBase-SR4光模块-QSFP28-100G-多模模块(850nm,0.1km,MPO) |
| QSFP-100G-PSM4 |
100GBase-PSM4光模块-QSFP28-100G-单模模块(1310nm,0.5km,MPO) |
| QSFP-100G-CLR4 |
高速光模块-QSFP28-1310nm-4*25GBase--6.5dBm-2.5dBm--10.7dBm-LC/PC-SMF-2km |
| QSFP-100G-CWDM4 |
高速光模块-QSFP28-1310nm-4*25GBase--6.5dBm-2.5dBm--9.8dBm-LC/PC-2km |
| QSFP-100G-LR4 |
100GBase-LR4光模块-QSFP28-100G-单模模块(1310nm,10km,LC) |
| CFP-100G-SR10 |
高速光模块-CFP-100G-多模模块(850nm,10*10G,0.1km,MPO)(可对接10个SFP+或2个QSFP+) |
| CFP-100G-SR10 |
高速光模块-CFP-100G-多模模块(850nm,10*10G,0.1km,MPO)（可对接10个SFP+或2个QSFP+) |
| CFP-100G-LR4 |
高速光模块-CFP-100G-单模模块(1310nm 波段,4*25G,10km,直口LC) |
| CFP-100G-ER4 |
高速光模块-CFP-100G-单模模块(1310nm 波段,4*25G,40km,直口LC) |
| QSFP-100G-CU1M |
高速电缆-100G QSFP28无源高速电缆-1m-(QSFP28)-(CC8P0.254黑(S))-(QSFP28)-以太网100GbE |
| QSFP-100G-CU3M |
高速电缆-100G QSFP28无源高速电缆-3m-(QSFP28)-(CC8P0.254黑(S))-(QSFP28)-以太网100GbE |
| QSFP-100G-CU5M |
高速电缆-100G QSFP28无源高速电缆-5m-(QSFP28)-(CC8P0.4黑(S))-(QSFP28)-以太网100GbE |
| CFP-100G-ZR4 |
100GBase-CFP模块-100G-单模模块(1310nm 波段,4*25G,80km,直口LC) |
| BIDI-SFP光模块 |
| SFP-FE-LX-SM1310-BIDI |
光模块-eSFP-FE-BIDI单模模块(TX1310/RX1550,15km,LC) |
| SFP-FE-LX-SM1550-BIDI |
光模块-eSFP-FE-BIDI单模模块(TX1550/RX1310,15km,LC) |
| SFP-GE-LX-SM1310-BIDI |
光模块-eSFP-GE-BIDI单模模块(TX1310/RX1490,10km,LC) |
| SFP-GE-LX-SM1490-BIDI |
光模块-eSFP-GE-BIDI单模模块(TX1490/RX1310,10km,LC) |
| SFP-GE-BXU1-SC |
1000Base-BIDI单纤双向光模块-SFP-GE-单模模块(TX1490nm/RX1310nm,10km,SC) |
| LE2MGSC40ED0 |
光模块-SFP-GE-BIDI单模模块(TX1490/RX1310,40km,LC) |
| LE2MGSC40DE0 |
光模块-SFP-GE-BIDI单模模块(TX1310/RX1490,40km,LC) |
| SFP-GE-ZBXD1 |
光模块-eSFP-GE-单纤双向模块(1570nm(Tx)/1490nm(Rx),80km,LC) |
| SFP-GE-ZBXU1 |
光模块-eSFP-GE-单纤双向模块(1490nm(Tx)/1570nm(Rx),80km,LC) |
| 电源 |
| LE0MPSD16 |
1600W直流电源模块(灰色) |
| LE0MPSA08 |
800W交流电源模块(灰色) |
| PAC-2200WF |
2200W交流电源模块 |
| W2PSD2200 |
2200W直流电源模块(黑色) |
| LE0W01DPDB |
直流配电盒组件（共4路40A输出，单路最大1600W，含电源线） |
| IN6W18L10A |
交流分线盒组件（共8路10A输出，单路最大1600W，含电源线） |
| IM1W24APD |
交流分线盒组件（共4路16A输出，单路最大2500W，含电源线） |
| 软件 |
| ES0SMS277700 |
S7700基本软件，V200R007 |
| ES0SMS287700 |
S7700基本软件，V200R008 |
| ES0SMS297700 |
S7700基本软件，V200R009 |
| ES0SMS2A7700 |
S7700基本软件，V200R010 |
| ES0SSVFF7700 |
SVF功能授权(适用S7700系列) |
| ES0SMPLS7700 |
MPLS功能授权 |
| ES0SNQAF7700 |
NQA功能授权 |
| ES0SIPV67700 |
IPV6功能授权 |
| ES1SFIB128K0 |
X系列单板FIB资源授权-128K |
| ES1SWL512AP0 |
WLAN无线接入控制器AP资源授权-512AP(配合X系列单板使用) |
| ES1SWL128AP0 |
WLAN无线接入控制器AP资源授权-128AP(配合X系列单板使用) |
| ES1SWL64AP00 |
WLAN无线接入控制器AP资源授权-64AP(配合X系列单板使用) |
| ES1SWL16AP00 |
WLAN无线接入控制器AP资源授权-16AP(配合X系列单板使用) |
| ES1SPPPOE4K0 |
PPPoE接入用户资源授权-4K(配合X系列单板使用) |
| ES1SPPPOE8K0 |
PPPoE接入用户资源授权-8K(配合X系列单板使用) |
| ES1SPPPOE16K |
PPPoE接入用户资源授权-16K(配合X系列单板使用) |
| L-ACU2-128AP |
ACU2无线接入控制器AP资源授权(128 AP) |
| 资料 |
| ES0I000DOC00 |
S7700 智能路由交换机 产品文档 |
